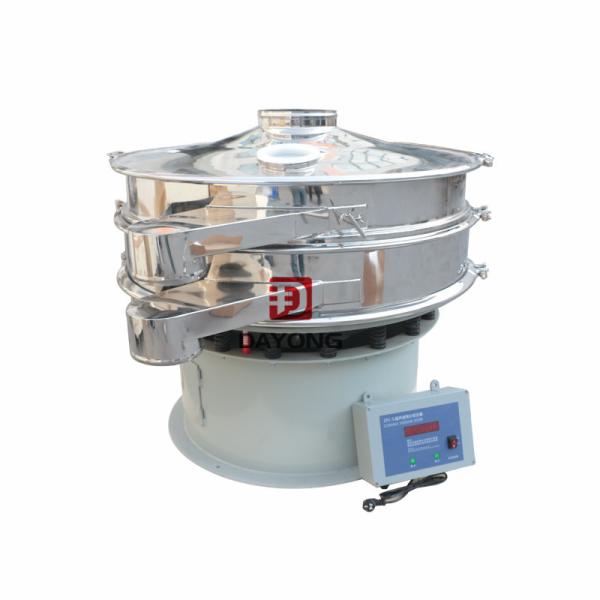

Circular Polyethylene Powder Ultrasonic Vibrating Screen With 1.1kw
Production Introduction
The ultrasonic vibrating wave (mechanic wave) added on the sieve mesh makes superfine powder accept the giant ultrasonic acceleration which restrains blockage factors which includes adhesion, friction, wedging ect., and improve sieving and cleaning efficiency.
Main Features
1. No mesh plug, self-cleaning screen device, not need bouncing balls.
2. High screening efficiency, long service working life.
3. Suit for screening 40-635 mesh size, especially above 300 mesh.
4.Solve screening problems effectively, such as strong adsorption, easy reunion, high electrostatic, high density, light proportion etc.
Using Scope
1. Chemical industry: resin, pigment, industrial medicine, cosmetic, coatings, Chinese medicine power.
2. Food industry: sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup.
3. Metal, metallurgy mining industry: aluminum powder, copper powder, ore alloy powder, welding rod powder, dioxide manganese, rubbing powder, fire-proof material, kaolin, lime, alumina, heavy calcium carbonate.
4. Social pollution disposed: disposed oil, disposed water, disposed dye waste water,assistant detergent, active carbon.
Technical Parameters
| Model |
Power |
Sieving diameter |
Effective area (m2) |
Volume (mm) |
Nets layer |
| DYC400-1S |
0.18 |
320mm |
0.0804 |
580*580*560 |
1 |
| DYC600-1S |
0.55 |
550mm |
0.2124 |
800*800*680 |
1 |
| DYC800-1S |
0.75 |
750mm |
0.4072 |
900*900*780 |
1 |
| DYC1000-1S |
1.5 |
950mm |
0.6221 |
1160*1160*880 |
1 |
| DYC1200-1S |
1.75 |
1150mm |
0.9331 |
1360*1360*980 |
1 |
FAQ
Q:How to choose the suitable machine?
A:The proper selection of the vibrating screen depends on the material, number of layers, every mesh size, capacity, material moisture, viscous and corrosive etc:
Name and feature of the raw material?
Aim of using: get rid of impurity, filtration, grading
Handling capacity: kg /h, L/h
The raw material size: (mesh or mm)
How many final materials you want, or how many layer you need?
Local power supply (voltage and frequency)
Note: You had better send us the relevant pictures about the details.
Our Service
Improve the added value of our products, and let the clients free from the using troubles:
1. Assisting the clients preparing for the first construction scheme;
2. Installing and testing the equipment;
3. Training the first-line operators on site;
4. Engineer go your site to install and maintance.
